A490 Tension Control Bolts
3/4''~7/8''
A490 Tension Control Bolts are ultra-high-strength TC bolts with a splined end that snaps off at precise preload. They meet ASTM F3125 Grade A490, offering 150 ksi (1034 MPa) tensile strength. Used in critical steel structures like high-rise buildings and bridges.
Quantity:
Product Name：A490 Tension Control Bolts

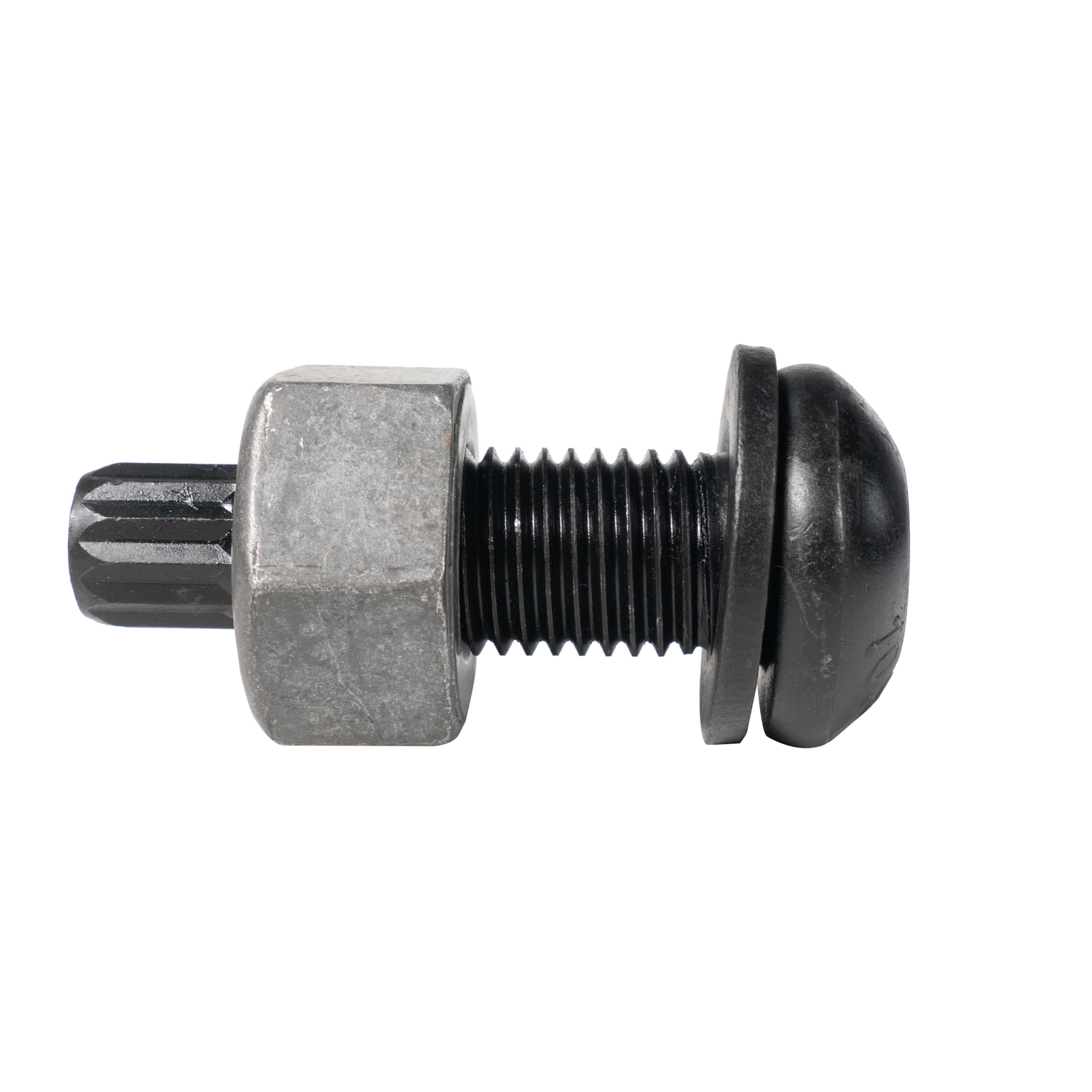

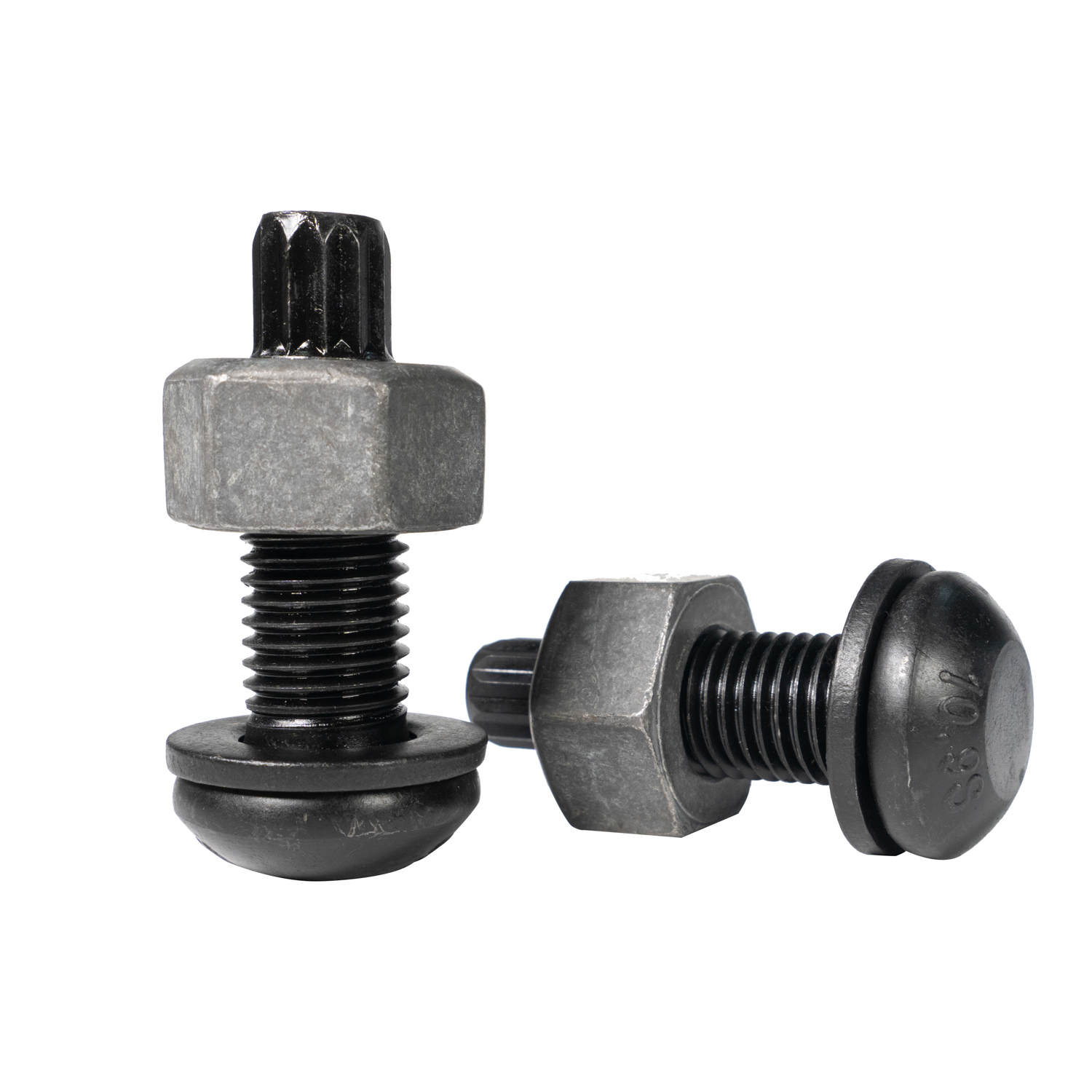

Our A490 Tension Control Bolts are ultra-high-strength structural fasteners conforming to ASTM F3125 Grade A490, offering a minimum tensile strength of 150 ksi (1034 MPa) for diameters 1/2"through 1-1/2". The Hexagon head TC bolt features a standard heavy hex head on one end and a splined tip on the other, which shears off when the precise preload is reached during installation using a tension-control wrench. As Grade A490 tension control bolts, they provide consistent and reliable bolt tension without torque wrenches, making them ideal for critical steel connections such as high-rise buildings, bridges, heavy industrial plants, and wind towers. Due to their high hardness, these bolts require careful handling and are not recommended for hot-dip galvanizing.
