ISO 13918 SD1 Shear Studs: A Simple Guide

What Is an SD1 Shear Stud?

SD1 is a type of shear connector specified in ISO 13918, a standard for studs and ceramic ferrules used in arc stud welding.

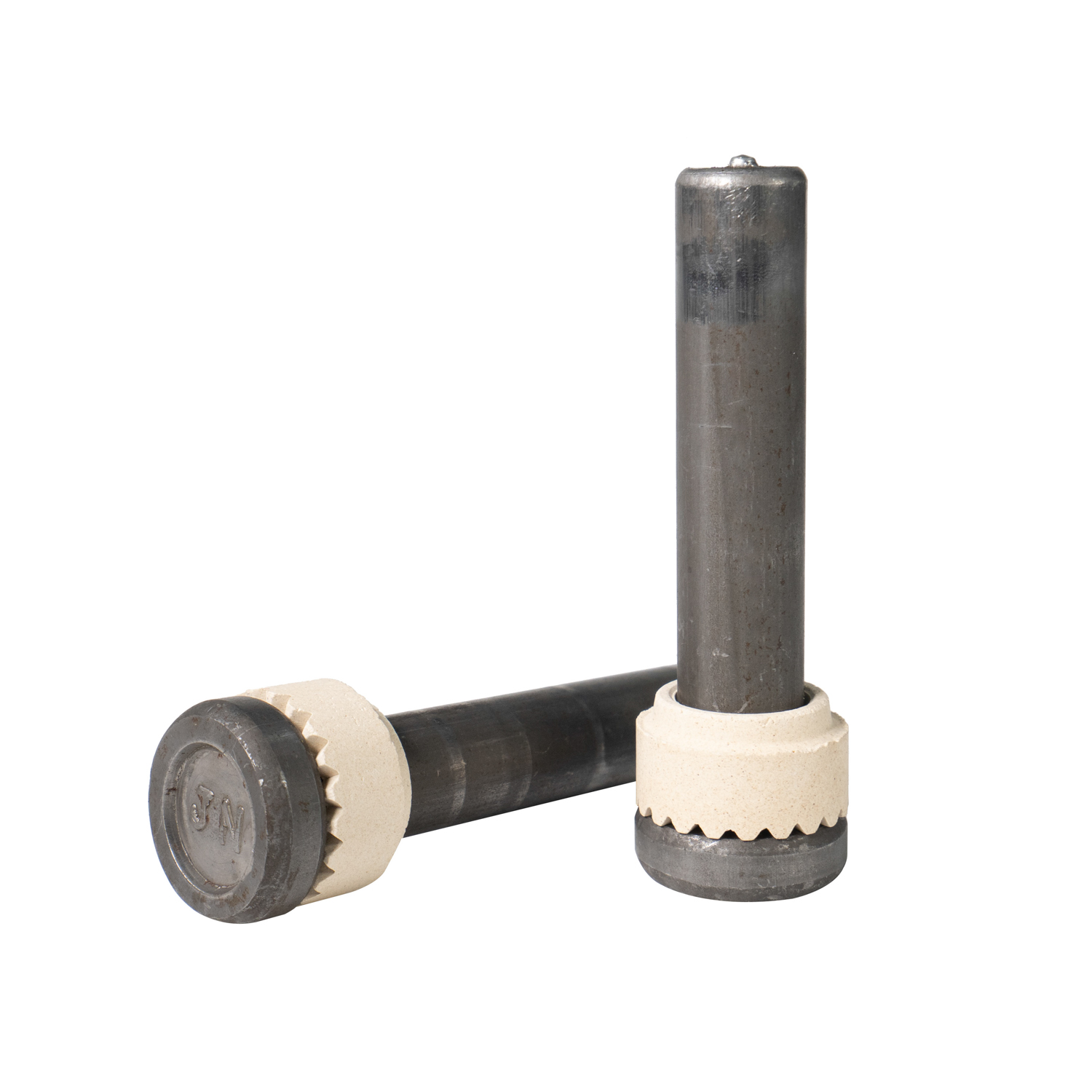

A typical SD1 shear stud consists of a steel stud body, welding end and enlarged head. After welding, the stud is embedded in concrete to transfer shear forces between the steel and concrete.

Common Applications

SD1 shear studs are commonly used for:

• Composite steel beams

• Composite floors

• Steel bridges

• Industrial buildings

• Steel-concrete structures

• Infrastructure projects

SD1 Shear Stud Welding

SD1 studs are generally installed using arc stud welding. A ceramic ferrule is normally used during welding to protect and shape the weld area.

The welding quality can be affected by:

• Welding current

• Welding time

• Stud size

• Base steel

• Surface condition

• Welding equipment

Proper welding parameters are essential for achieving a reliable connection.

SD1 Dimensions and Materials

SD1 shear studs are available in different diameters and lengths, depending on project requirements.

When ordering, buyers should confirm:

• Stud type: ISO 13918 SD1

• Diameter

• Length

• Material

• Shape

• Quantity

• Ceramic ferrule requirements

For customized projects, technical drawings are recommended.

SD1 Shear Stud Quality Control

Depending on project requirements, inspection may include:

• Chemical composition

• Tensile testing

• Dimensional inspection

• Visual inspection

• Welding tests

Proper raw material control and dimensional accuracy are important for consistent welding performance.

Why Choose a Reliable SD1 Shear Stud Manufacturer?

For steel construction projects, buyers should consider not only price but also:

• Raw material quality

• Manufacturing capability

• Testing equipment

• Quality control

• Batch traceability

• Packaging

• Export experience

A professional manufacturer should be able to provide the required certificates and produce SD1 shear studs according to project specifications.

Conclusion

ISO 13918 SD1 shear studs are an important component for steel-concrete composite structures. Correct dimensions, suitable material and proper welding are essential for reliable performance.

If you are looking for ISO 13918 SD1 shear studs, please send us your required size, quantity or drawings. We can provide technical confirmation and quotation.
